Chemical sniffer device for multi-mode analysis of threat compounds

Informacje na temat projektu

ChemSniff

Identyfikator umowy o grant: 674716

DOI

10.3030/674716

Projekt został zamknięty

Data podpisania przez KE 23 Września 2015

Data rozpoczęcia 1 Września 2015

Data zakończenia 31 Sierpnia 2018

Finansowanie w ramach

• Secure societies - Protecting freedom and security of Europe and its citizens

Koszt całkowity

€ 2 262 000,00

Wkład UE

€ 1 577 030,00

Koordynowany przez

DA VINCI LABORATORY SOLUTIONS BV
Netherlands

Periodic Reporting for period 5 - ChemSniff (Chemical sniffer device for multi-mode analysis of threat compounds)

Okres sprawozdawczy: 2017-09-01 do 2018-08-31

Podsumowanie kontekstu i ogólnych celów projektu

The goal of this project is to develop a highly mobile MS system, with a short start-up time and a relative long standalone up-time. The MS system should be:
• Able to operate as a generic sensor for volatile compounds or in selectable modes, for example; Explosives, Drugs, CBRNE, Hidden people.
• Extremely easy to handle from an operator perspective, with analysis results displayed in a uniform matter on a suitably convenient android based tablet/smartphone.

Prace wykonane od początku projektu do końca okresu sprawozdawczego oraz najważniejsze dotychczasowe rezultaty

During this period focus has been made on the technical design of the system. Sub-designs were:
• MS miniaturised pre-filter.
• MS miniaturised quadrupole.
• Implementation of digital detection by means of TimePix detection.
• Implementation of a Panel PC.
• Protocols for internal communication between sup-devices and data processing.
• Development of a membrane based sample inlet.
• Launch of project web-site; www.chemsniff.eu

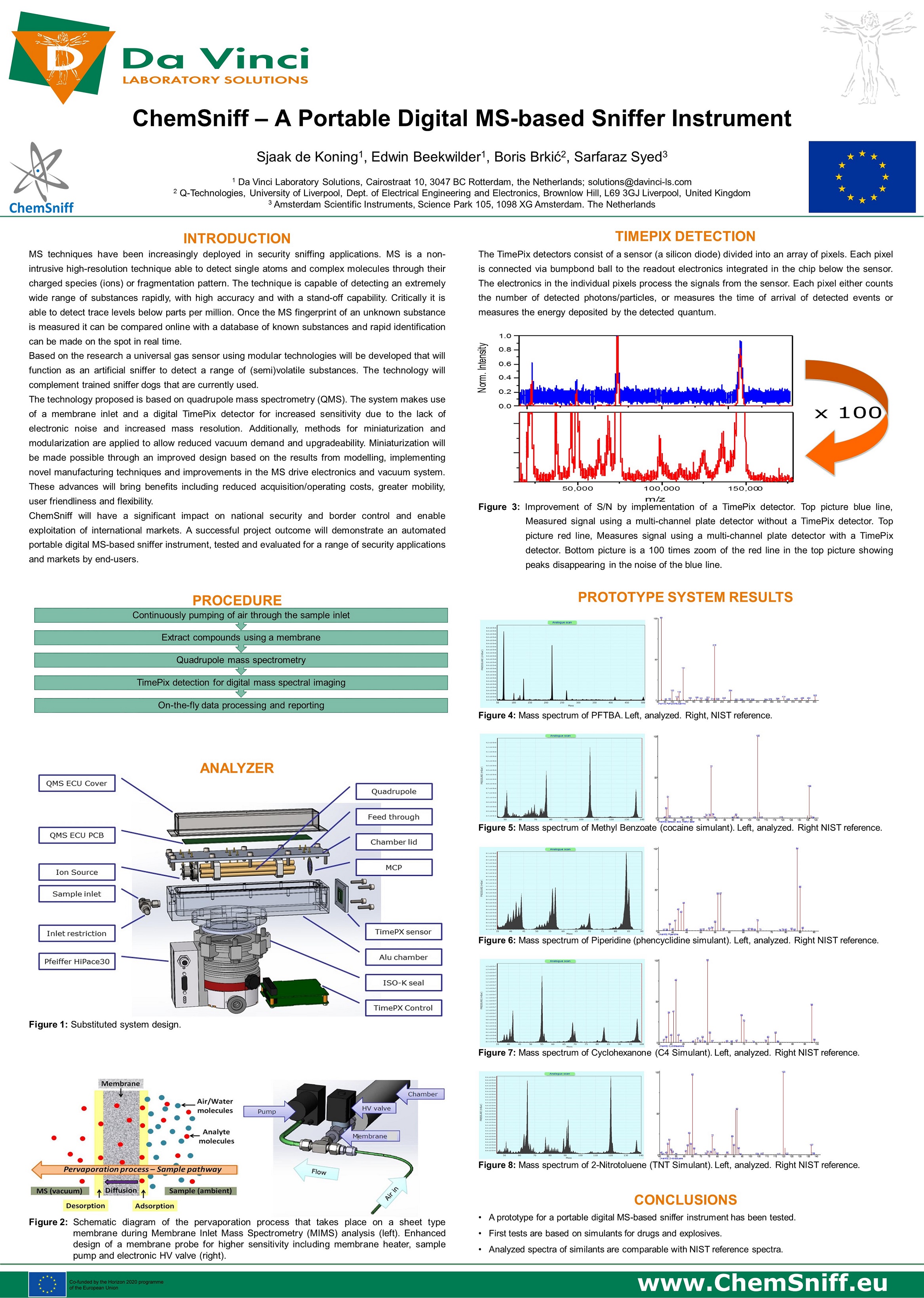

• Development of dissemination materials by means of poster and flyer.

Innowacyjność oraz oczekiwany potencjalny wpływ (w tym dotychczasowe znaczenie społeczno-gospodarcze i szersze implikacje społeczne projektu)

TimePix is a very sophisticated way of detection. Implementation of TimePix detection in ChemSniff will lead to the world wide first digital detecting mass spectrometer. Major advantage of TimePix detection is the absence of electronic noise resulting to more reliable and more sensitive data. Since the use of TimePix detection leads to higher sensitivity, the need for a pre-concentrator could be avoided, resulting in lower system weight, and a higher level of user-friendlyness.

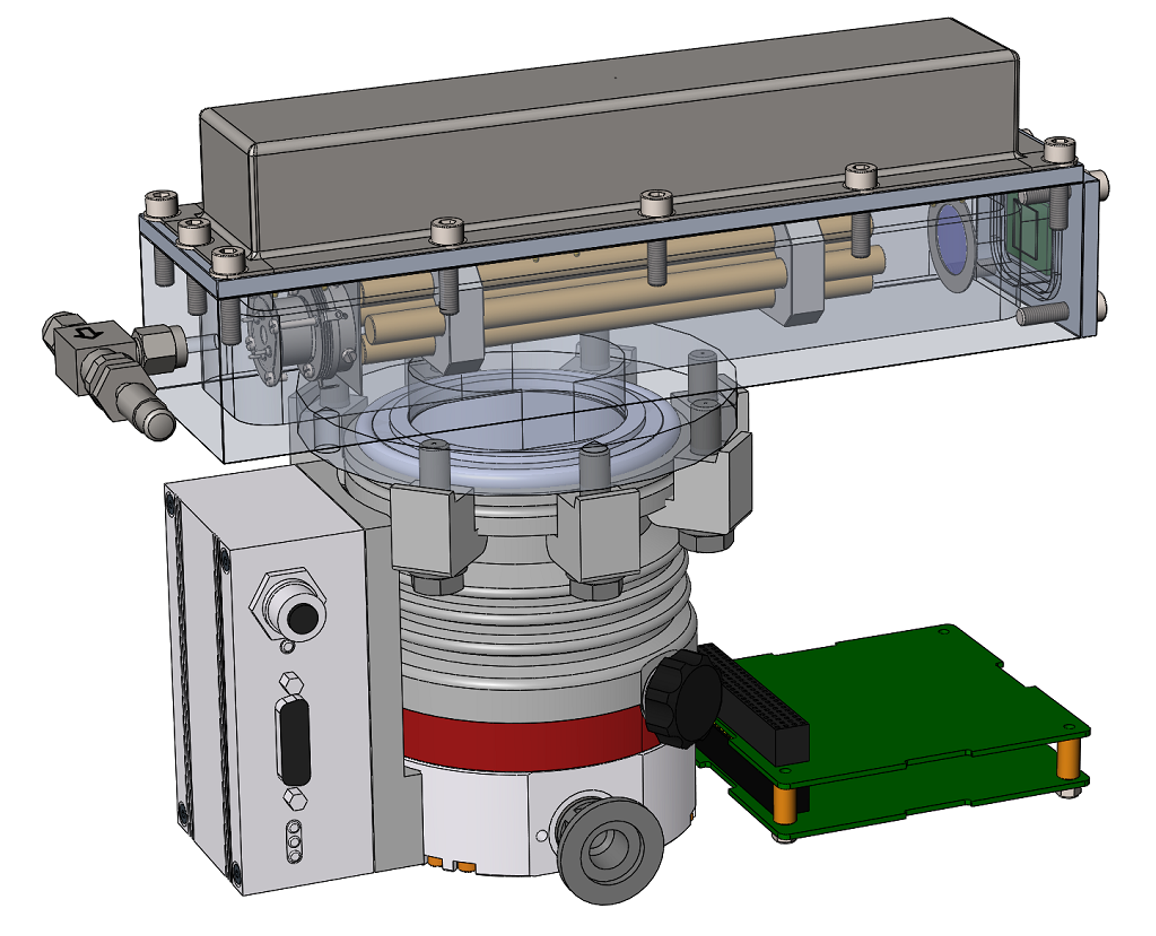

Drawing ChemSniff Device
